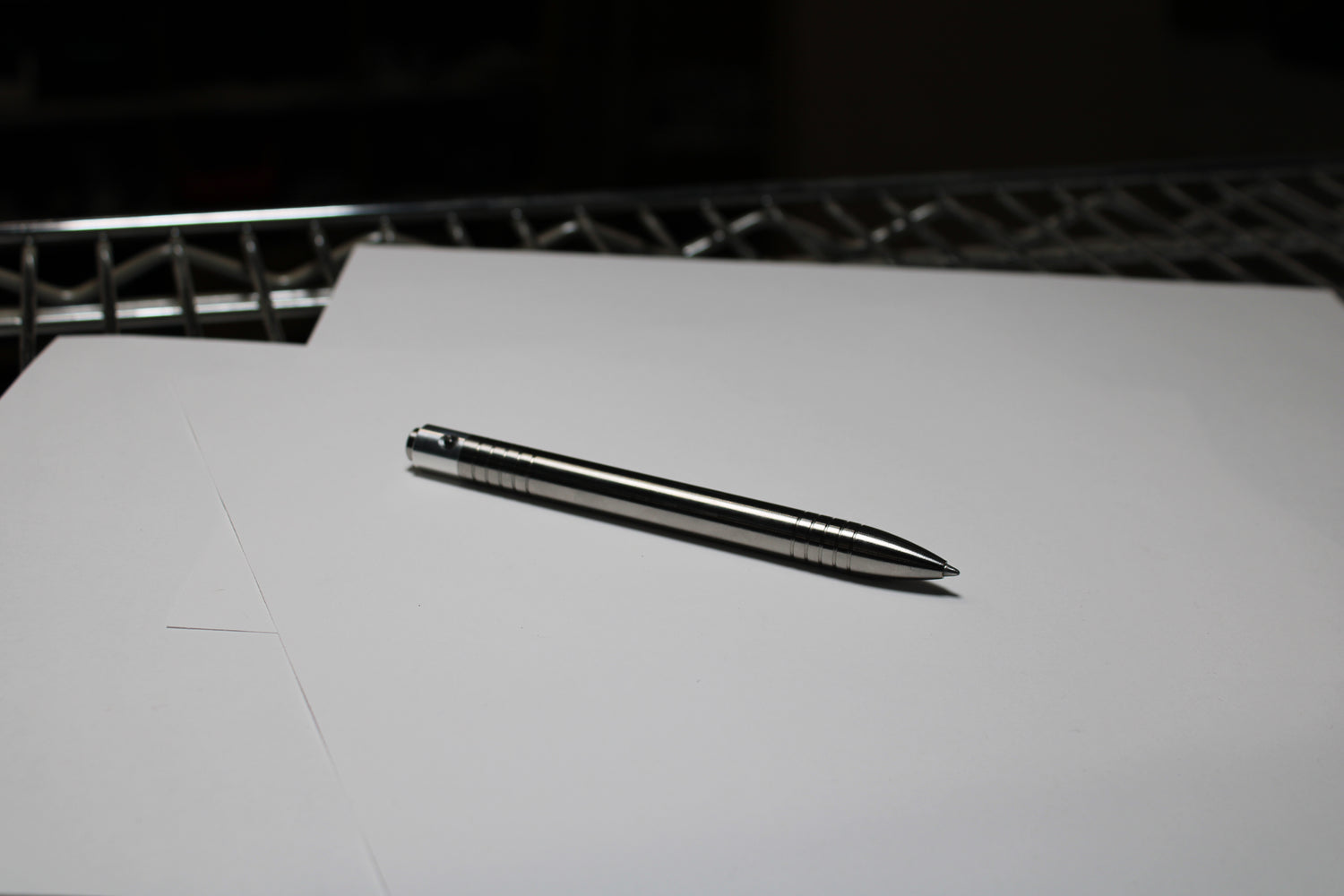

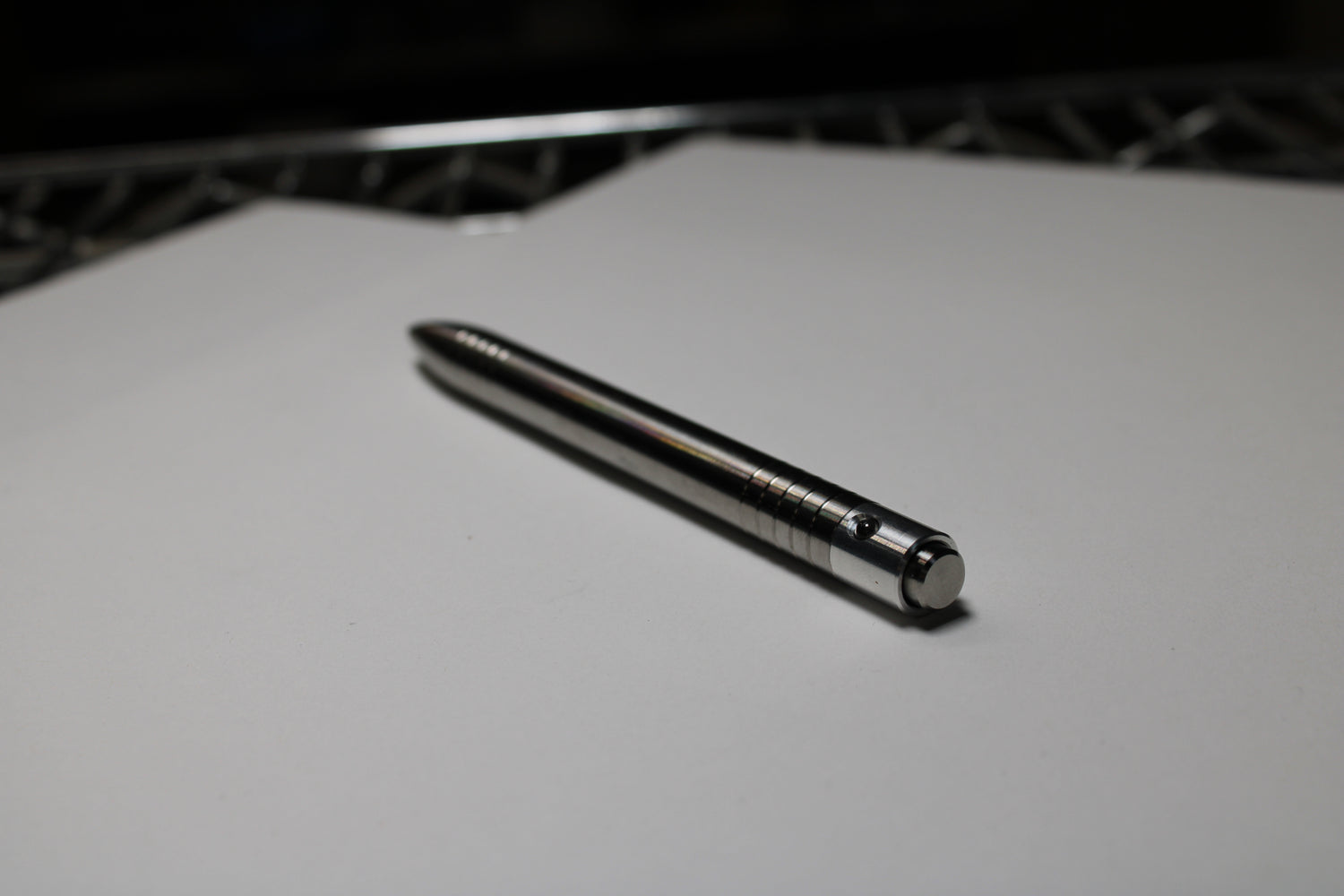

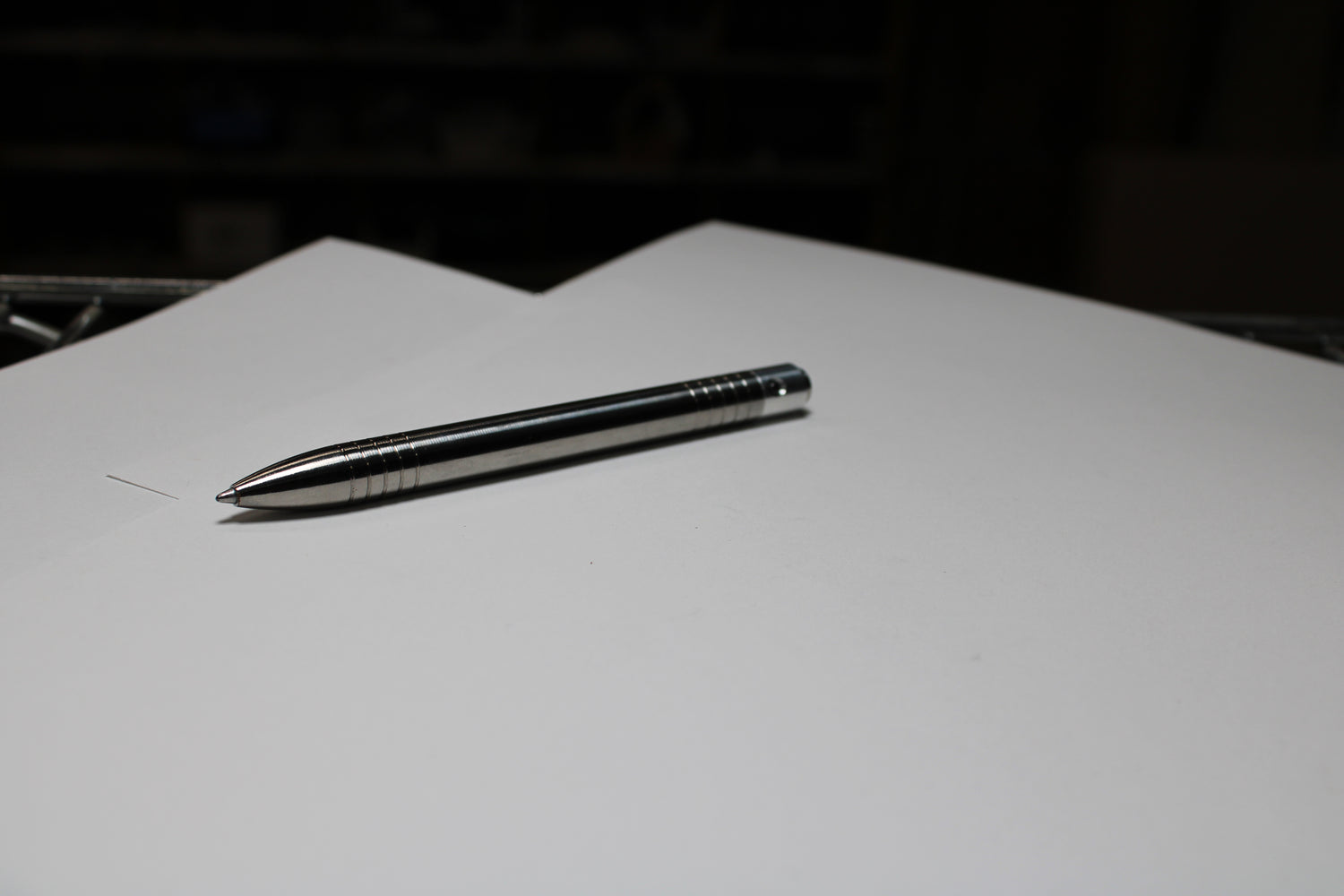

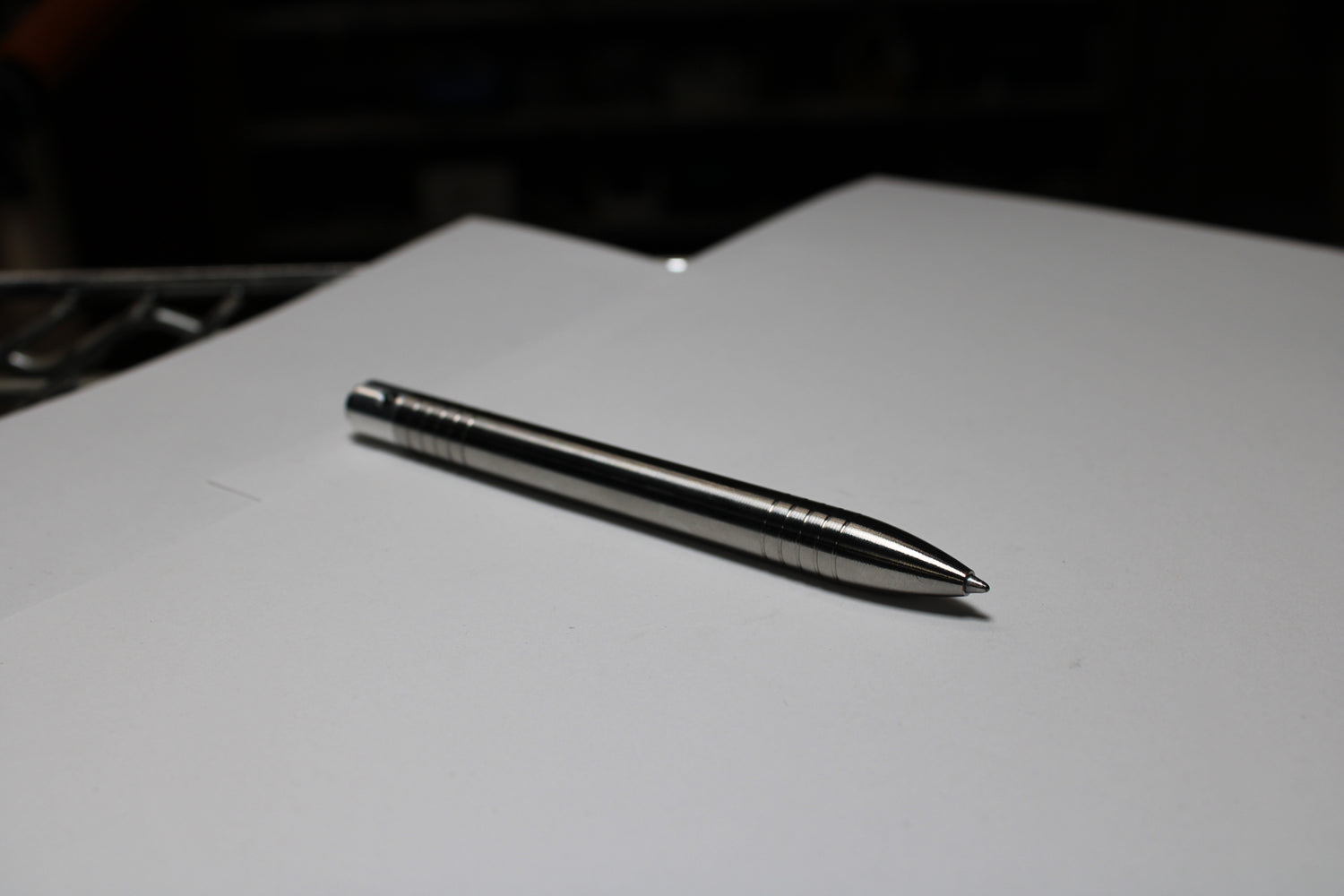

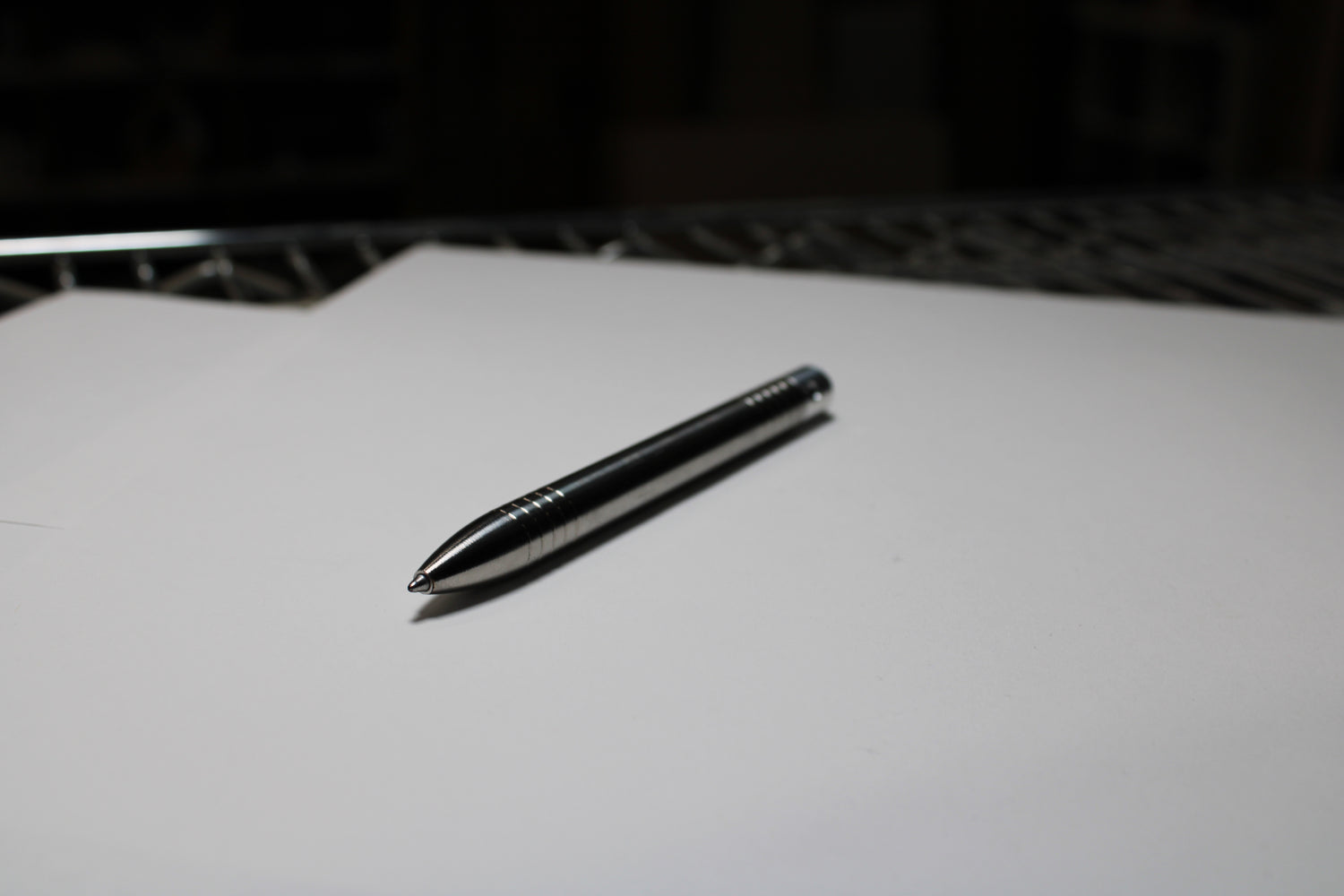

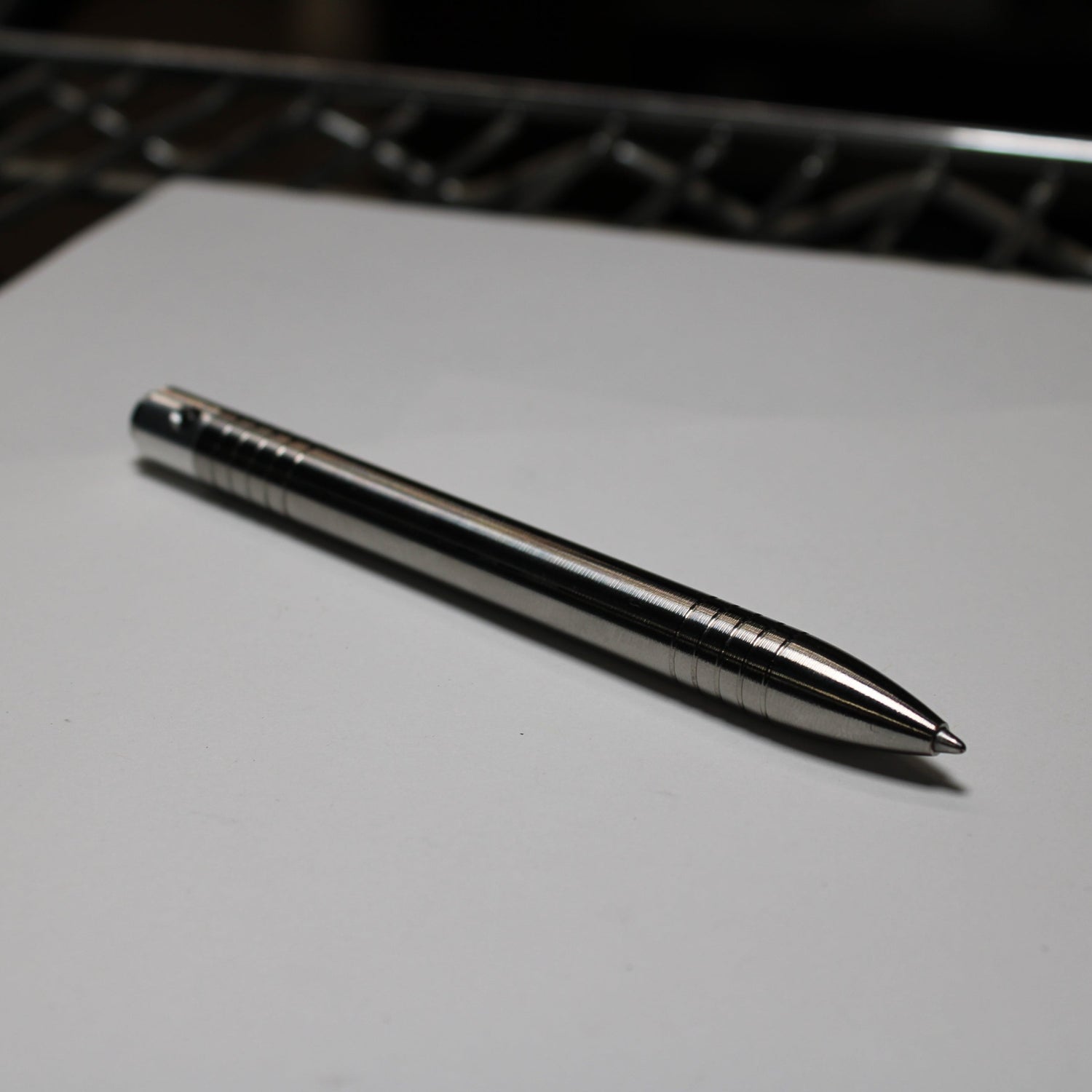

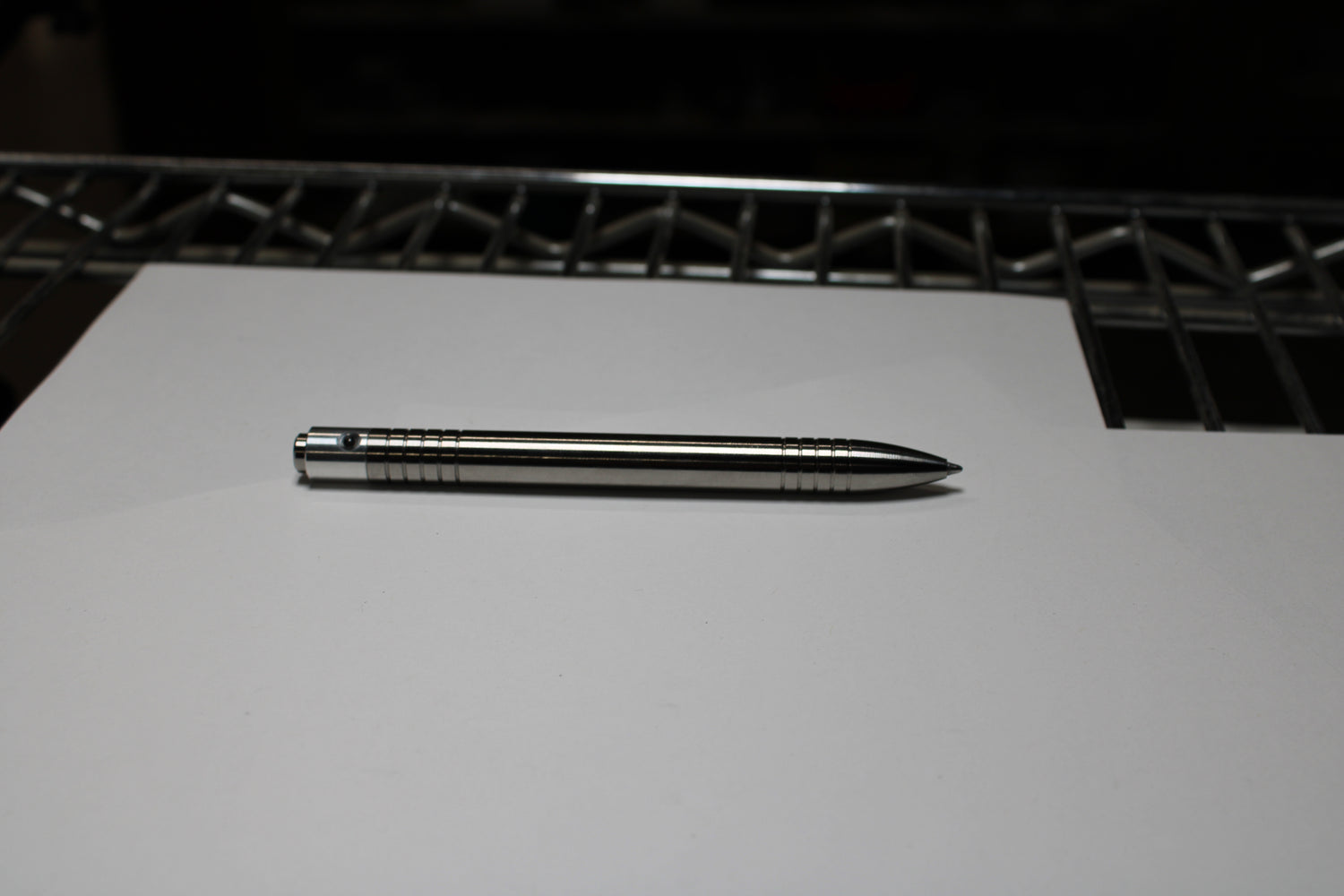

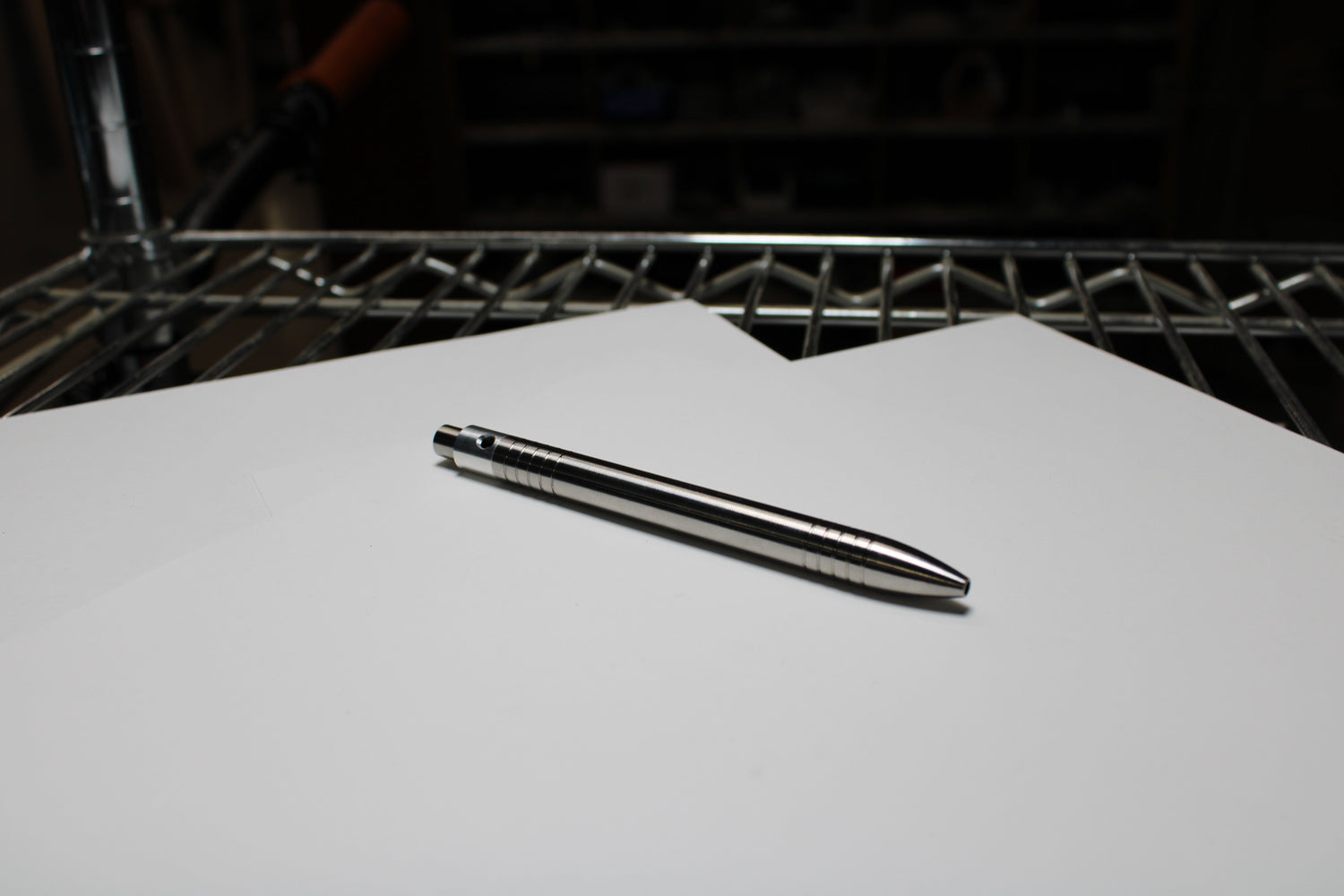

40 Clipless Click Pen - 6Al-4V Titanium - 6061 Aluminum Mechanism - Round Nose - Grip Lines - ISO G2 Schmidt EF9000 Refill

Regular price £89.00 GBP
Regular price Sale price £89.00 GBP
Shipping calculated at checkout.

Super sleek round nose design for the popular ISO G2 format refill. Includes an o-ring bumper that softens the return kickback to a nice thump. 0.40" body diameter with the same diameter mechanism. Includes all of the improvements from previous versions plus a few new ones. Retract mechanism is easier to push. The spring rate is more preferable for a slightly larger diameter mechanism.

The 6061 Aluminum clipless mechanism, is bright and smooth. There is a tight fit between the button stanchion and the mechanism body making it more resistant to binding from pressing the button on an angle. Improved mechanism button chamber features making button action even smoother. There is now a single detent track that improves the button bias depending on which side of the button is facing forward. Proper allowance for the refill and spring and mechanism is able to operate very smoothly, without the rough action of the refill and spring translating to the button.

Made out of the tough and hard solid bar stock 6Al-4V Grade 5 Titanium and the bright 6061 Aluminum for the mechanism. A single 0.40" (10.16mm) diameter grip, rounded nose section and grip grooves. The mechanism comes equipped with clear borosilicate balls. Tip details are extremely tight with a small land between the refill, and the conical section.

Minimal and clean design coupled with the Schmidt EasyFlow 90000 M refill.

Pinch the mechanism between your index finger and thumb to retract the mechanism with a satisfying snap. The click and return is very solid and super satisfying. Tolerances, fit and finish for the mechanism are very close.

Tip point details are very clean with an excellent tight fitting 0.0995" diameter bore and a tolerance of just 0.0010" to keep the refill tip exactly in place.

Higbee thread start to the pen body to make the thread action for replacing the refill better.

This version is 4.87" (123.7 mm) long, 0.40" (10.16mm) in diameter, and 27.2g (0.96oz)

Pens will ship over the next few days. Hopefully there are more to accommodate the demand. Thank you again!
