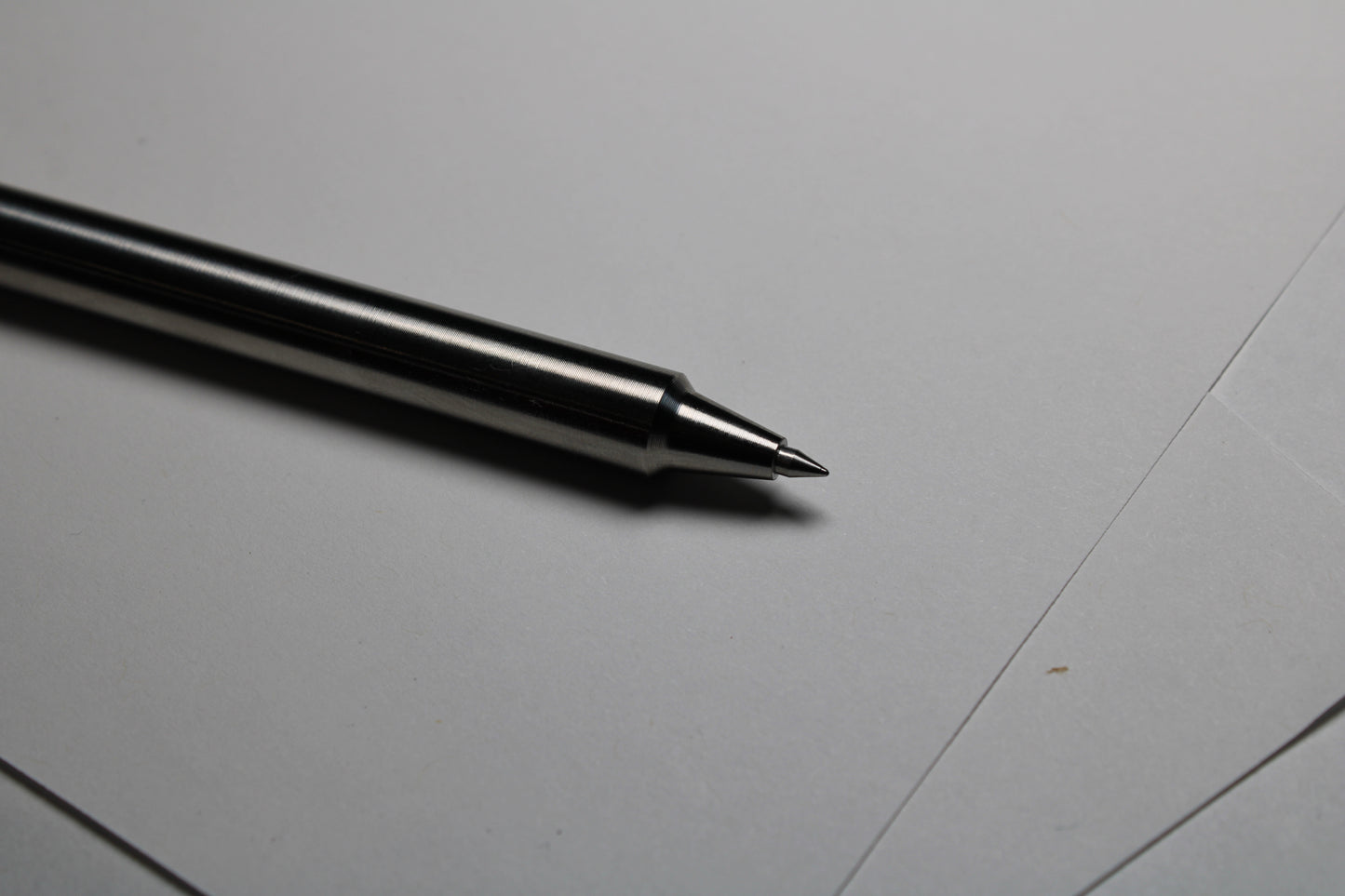

38 Click Pen - 6Al-4V Titanium - Stepped Nose - Pilot G2
A new unique design with a single 0.38" diameter grip and stepped nose section. Made entirely out of the tough and hard solid bar stock 6Al-4V Grade 5 Titanium. Clip design is improved with a tighter fitting gap and more flexibility.

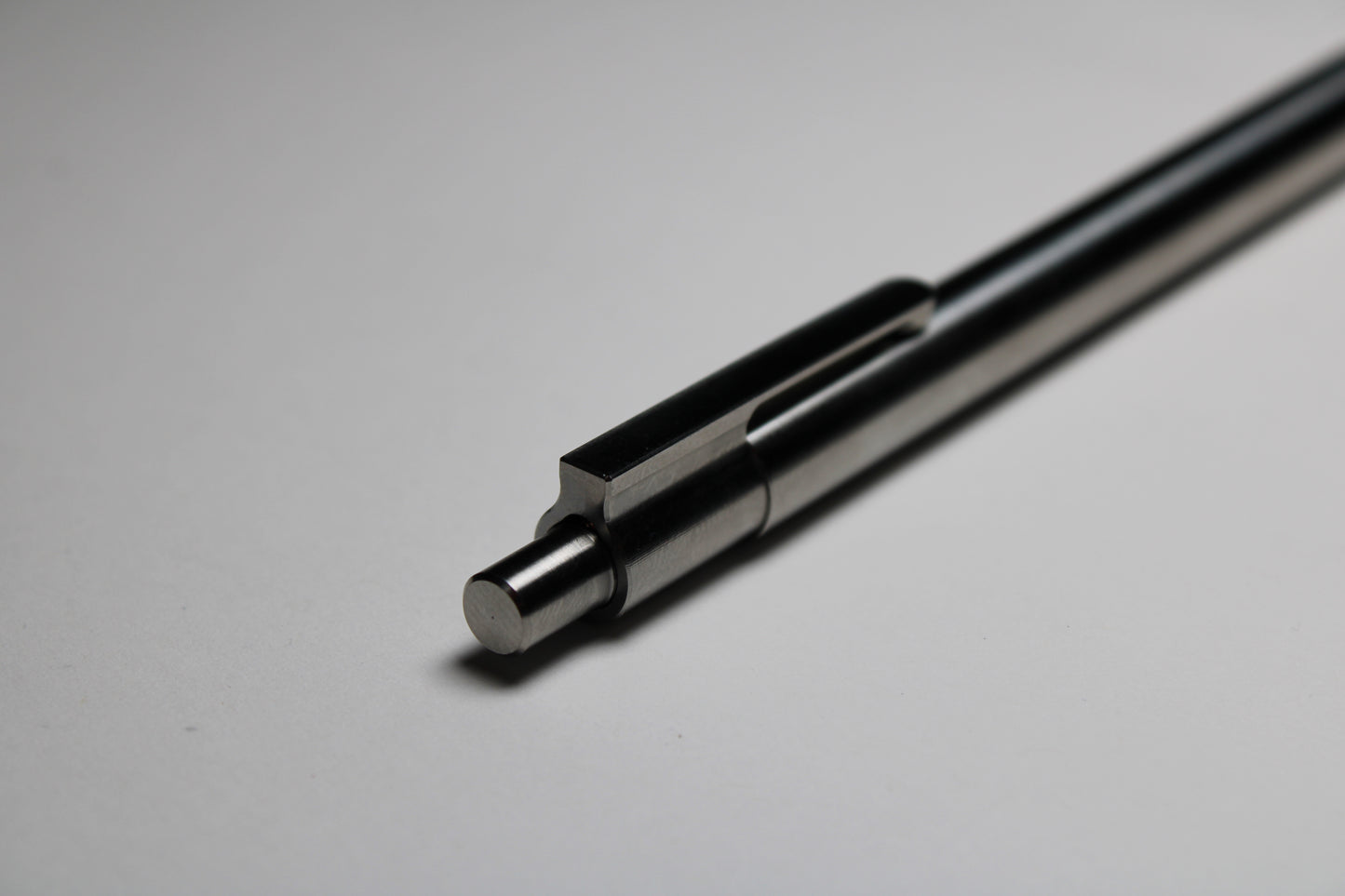

The click and return is very solid and super satisfying. Tolerances, fit and finish for the mechanism are very close. Pinch the mechanism between your index finger and thumb to retract the mechanism with a satisfying snap. The click and return is excellent on this version.

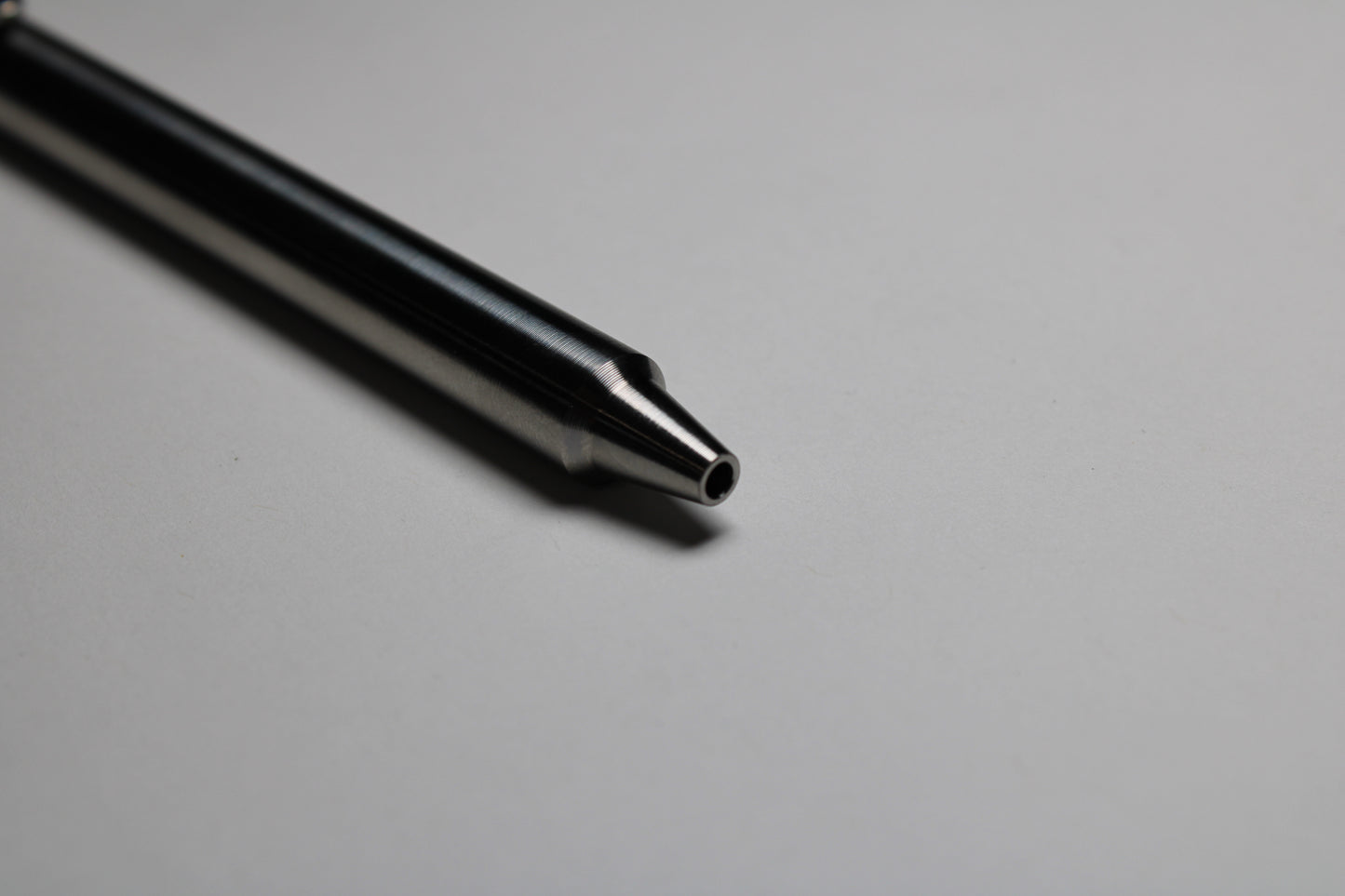

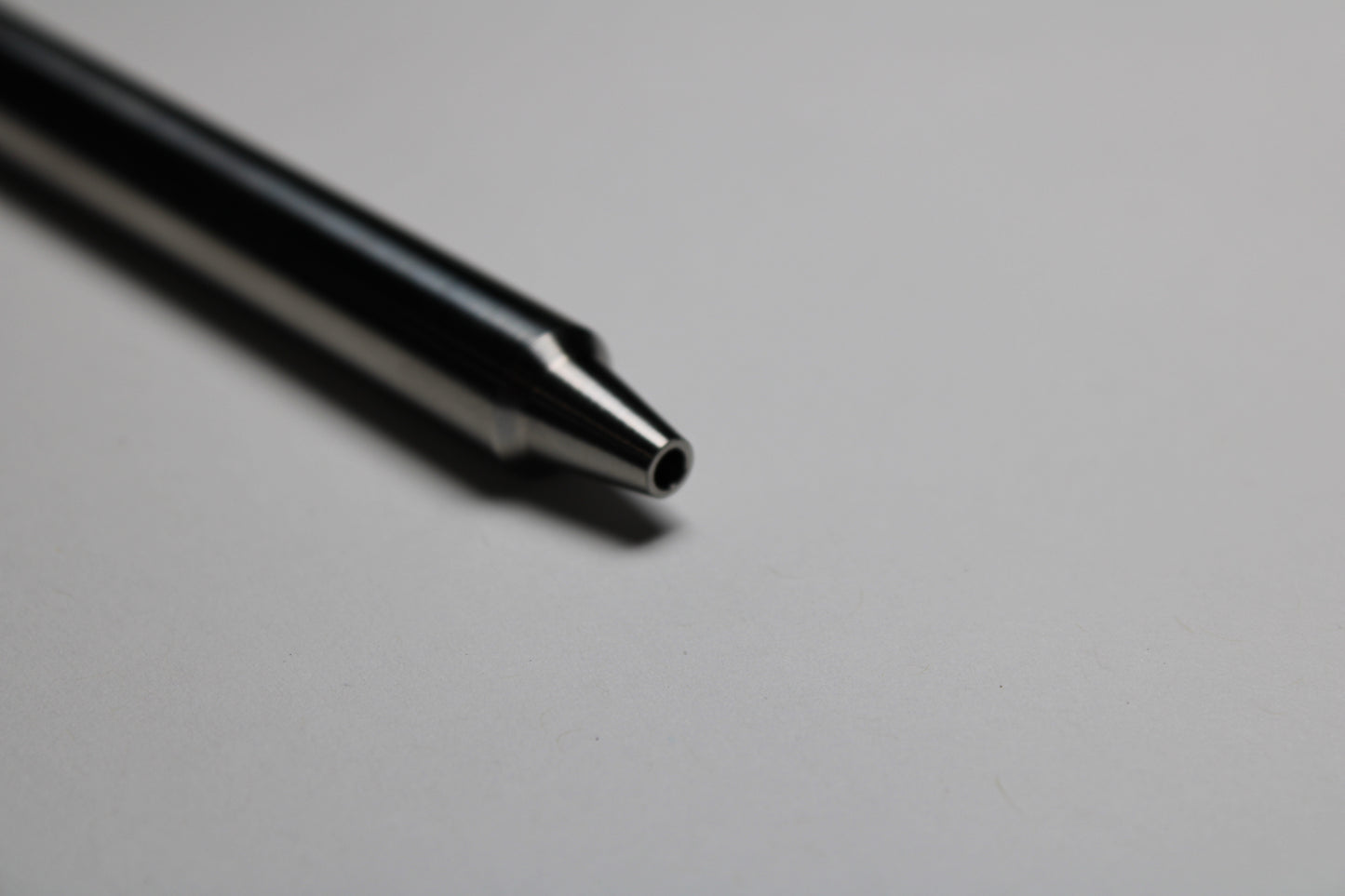

New enhanced tip bore size specifically for the Pilot G2. New 2.5mm (0.0984") drill yields a tighter fitting tip for the refill. Tolerance for these is 0.0984"-0.099" with a 0.099" pin as a no-go. Refill has no discernible wiggle. This is tighter than previous models that used a slightly larger drill and tolerance from 0.100"-0.101".
Higbee thread start to pen body to make the thread action for replacing the refill better.

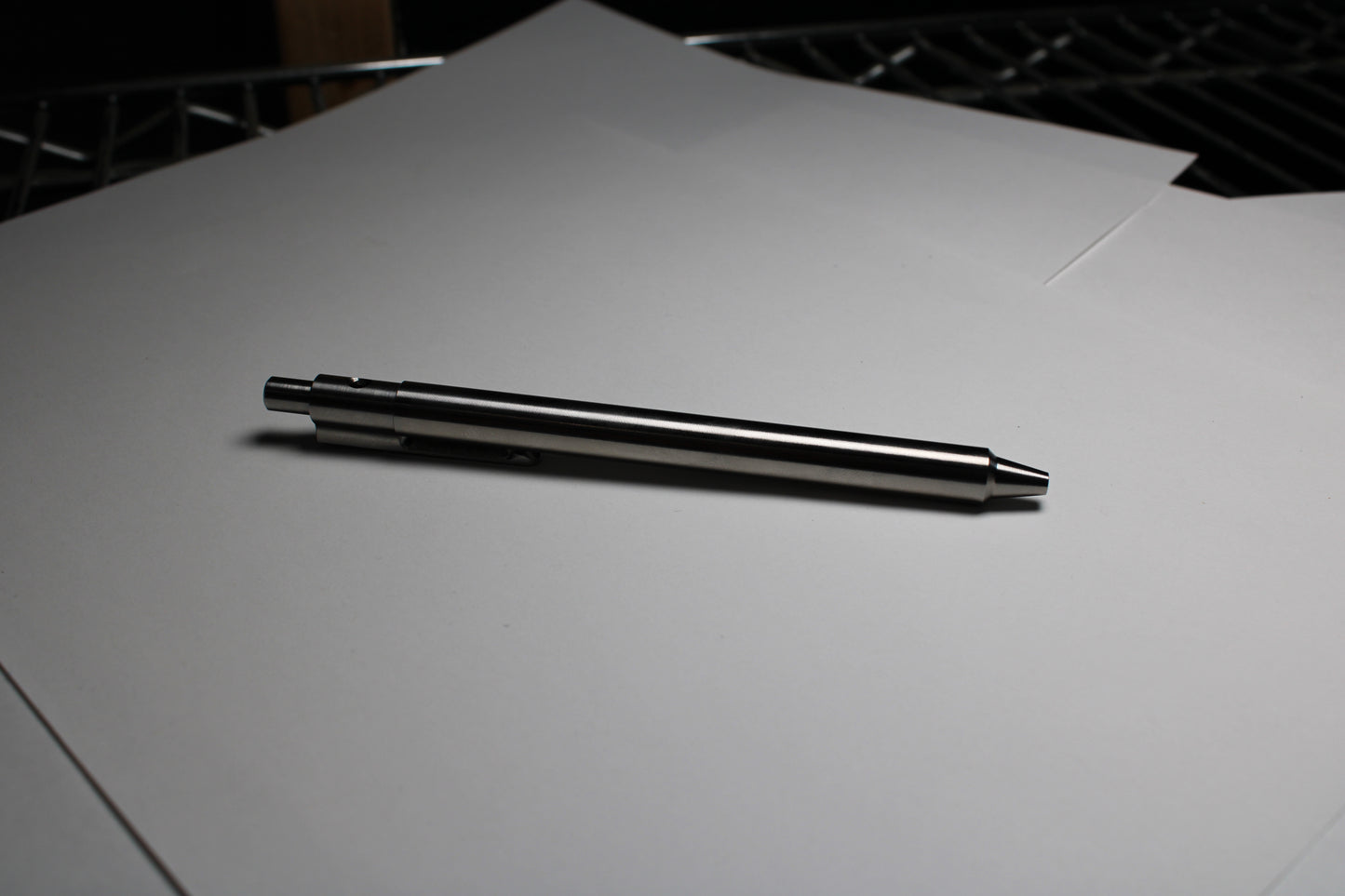

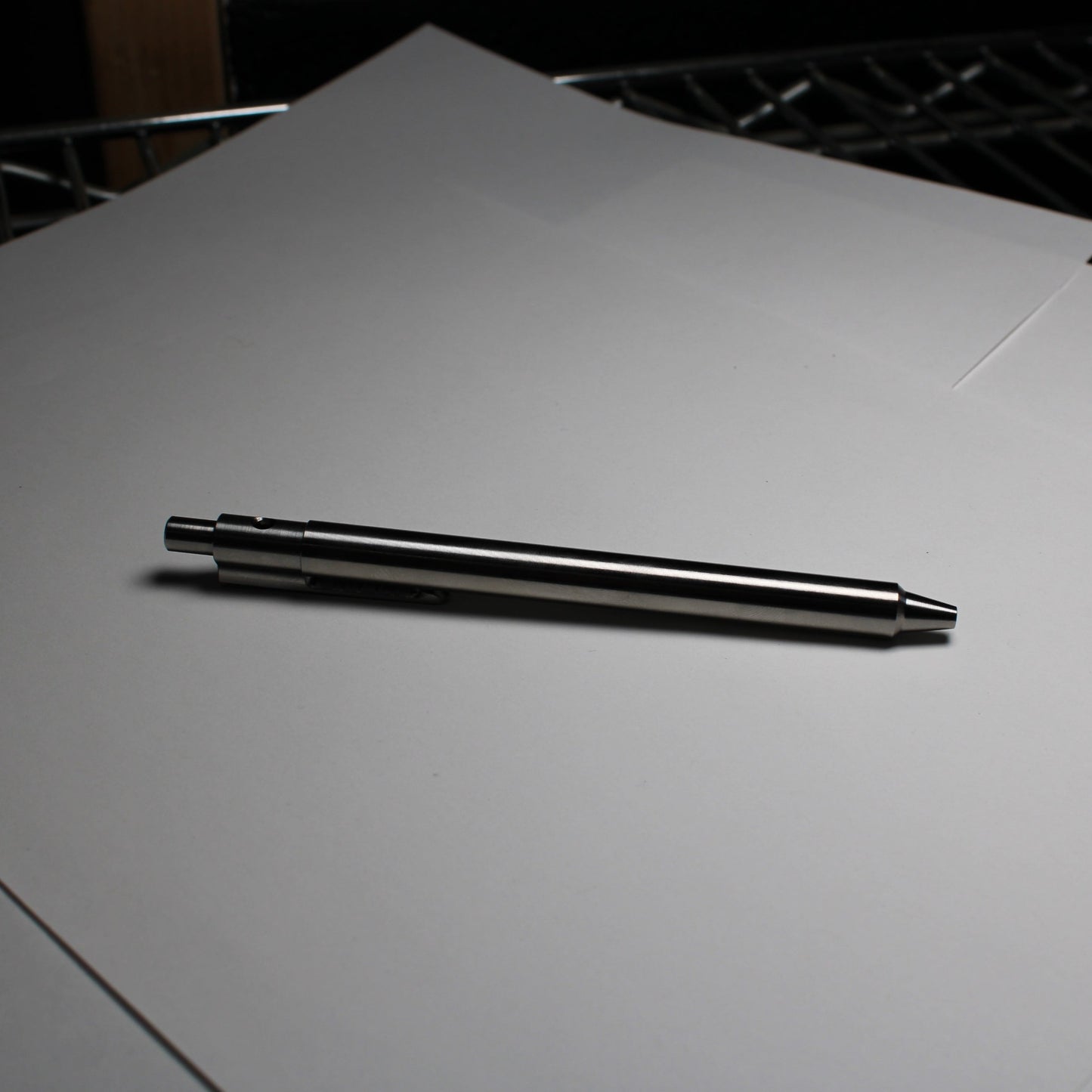

This version will be 5.25" (133.4mm) long, 0.38" (9.65mm) in diameter, and 27.18g (0.96oz).
