39 Click Pen - 6061 Aluminum Body - 6Al-4V Titanium Clip - Round Nose - Pilot G2
Each pen is made one at a time. The material for the pen body is 6061 Aluminum and solid 6Al-4V Titanium is used for the pen clip. A single 0.39" (9.91mm) diameter grip and a rounded nose section. Tip details are the tightest yet, with the smallest land between the refill and the cone tip profile. Clip holds onto thinner materials and will flex to accommodate thicker materials.
Unique one piece body design with no removable tip piece. Solid material is drilled out with a carbide drill perfectly true over an extreme diameter to depth radio, in order to fit the refills tightly without rattle.
No batching ensures all of the parts fit perfectly together. Unparalleled warranty to ensure that you are entirely happy with fit, function and finish.
The clip takes an excessive six individual operations to create a unique one piece clip and click mechanism.

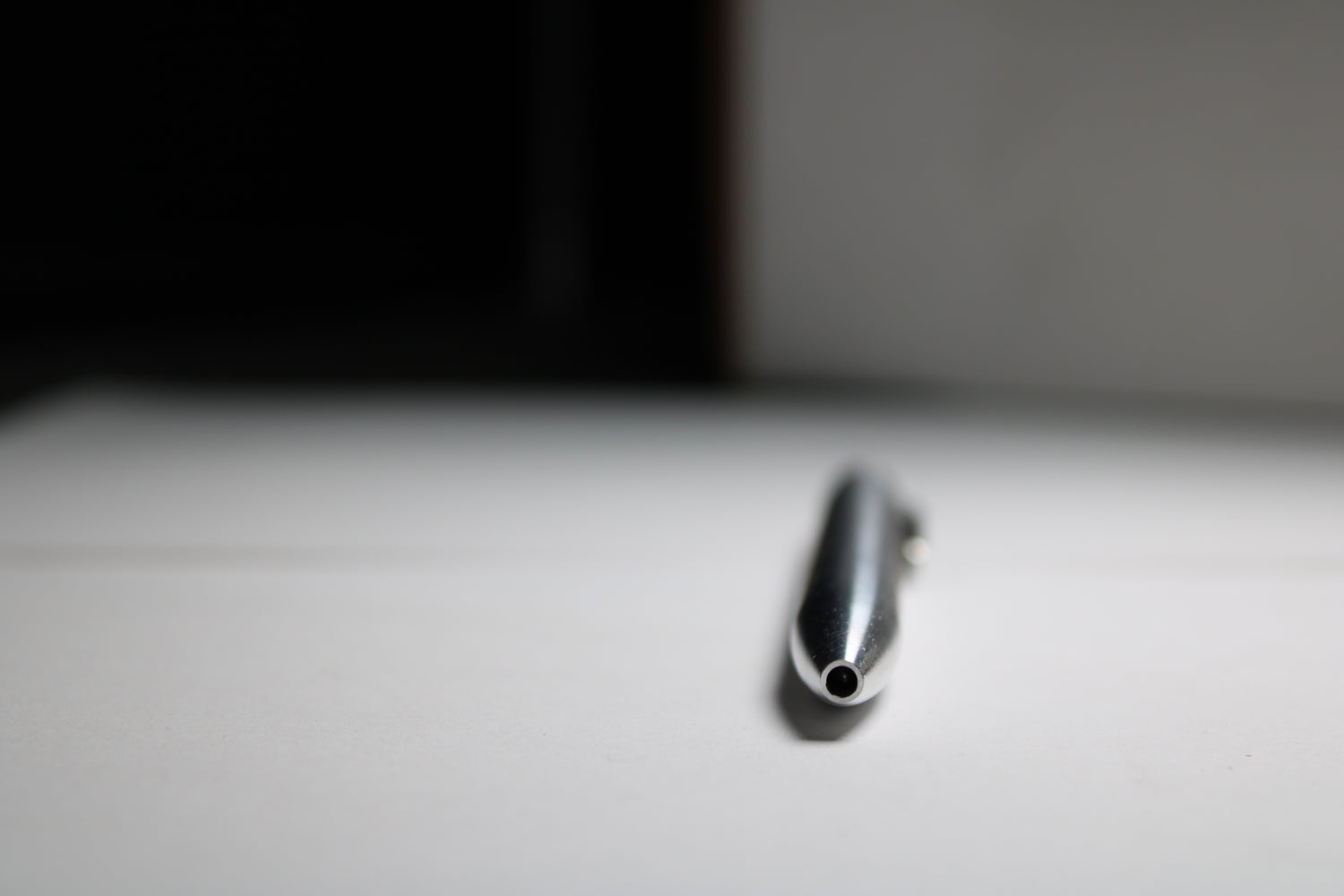

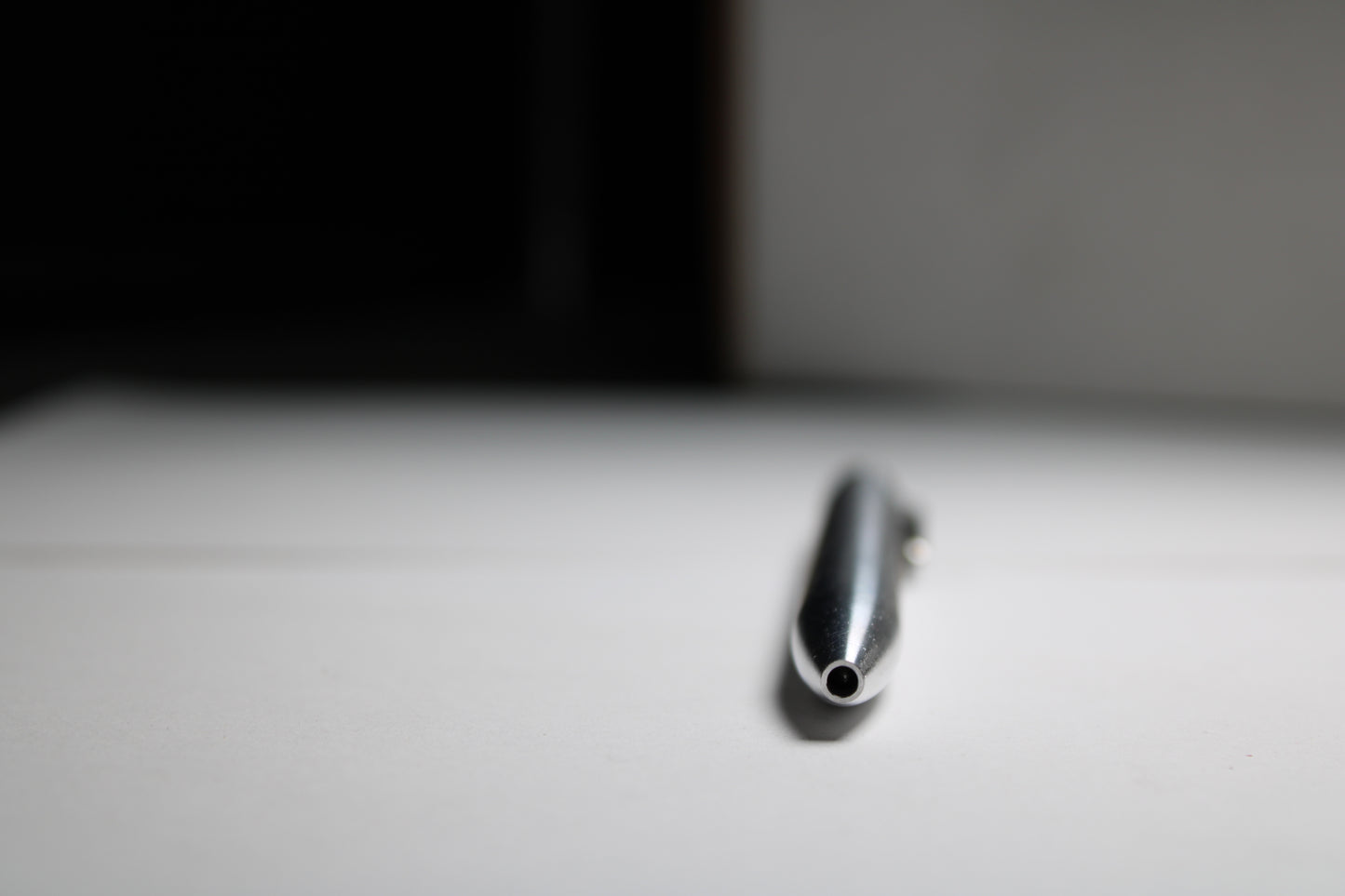

Tip bore drill is aligned and offset with great care and is machined to a tolerance of just 0.001" or 25 micron to a 2.5mm tip bore specifically for the Pilot G2. This pen will not fit ISO G2 refills with a spacer, the tip bore is too small by only another 0.001" to eliminate the most wiggle for this refill.
Click the button down and then return it by pinching the mechanism between your fingers, and the button will snap back. Threading has a high quality higbee start to make replacing the refill super easy.
This version is 5.28" (134.11mm) long, 0.39" (9.91mm) in diameter, and 20.12g (0.71oz) and comes equipped with a Fine Pilot G2 0.7mm.
