*PRE-ORDER* 37 Click Pen - 6Al-4V Titanium - Round Nose - Silicone Nitride Ball - Pilot G2
First of a series of pre orders for the very popular all titanium designs. I am investing in expanding my production capacity in order to deliver more of these pens to satisfy the strong demand. As part of the improvements the fit and finishes will be enhanced with new tools and production fixtures. Please email me your requests for styles and refills for future titanium pre orders. Aluminum designs will be offered for immediate sale as part of the setup and refining process. The orders for this design will be shipped no later than October 31st.
Made one at a time from solid 6Al-4V Titanium. A single 0.37" (9.40mm) diameter grip and a rounded nose section. The mechanism comes equipped this time with a black silicone nitride ball. Tip details are the tightest yet, with the smallest land between the refill and the cone tip profile. Clip holds onto thinner materials and will flex to accommodate thicker materials.
Unique one piece body design with no removable tip piece. Solid material is drilled out with a carbide drill perfectly true over an extreme diameter to depth radio, in order to fit the refills tightly without rattle.
No batching ensures all of the parts fit perfectly together. Unparalleled warranty to ensure that you are entirely happy with fit, function and finish.
The clip takes an excessive six individual operations to create a unique one piece clip and click mechanism.

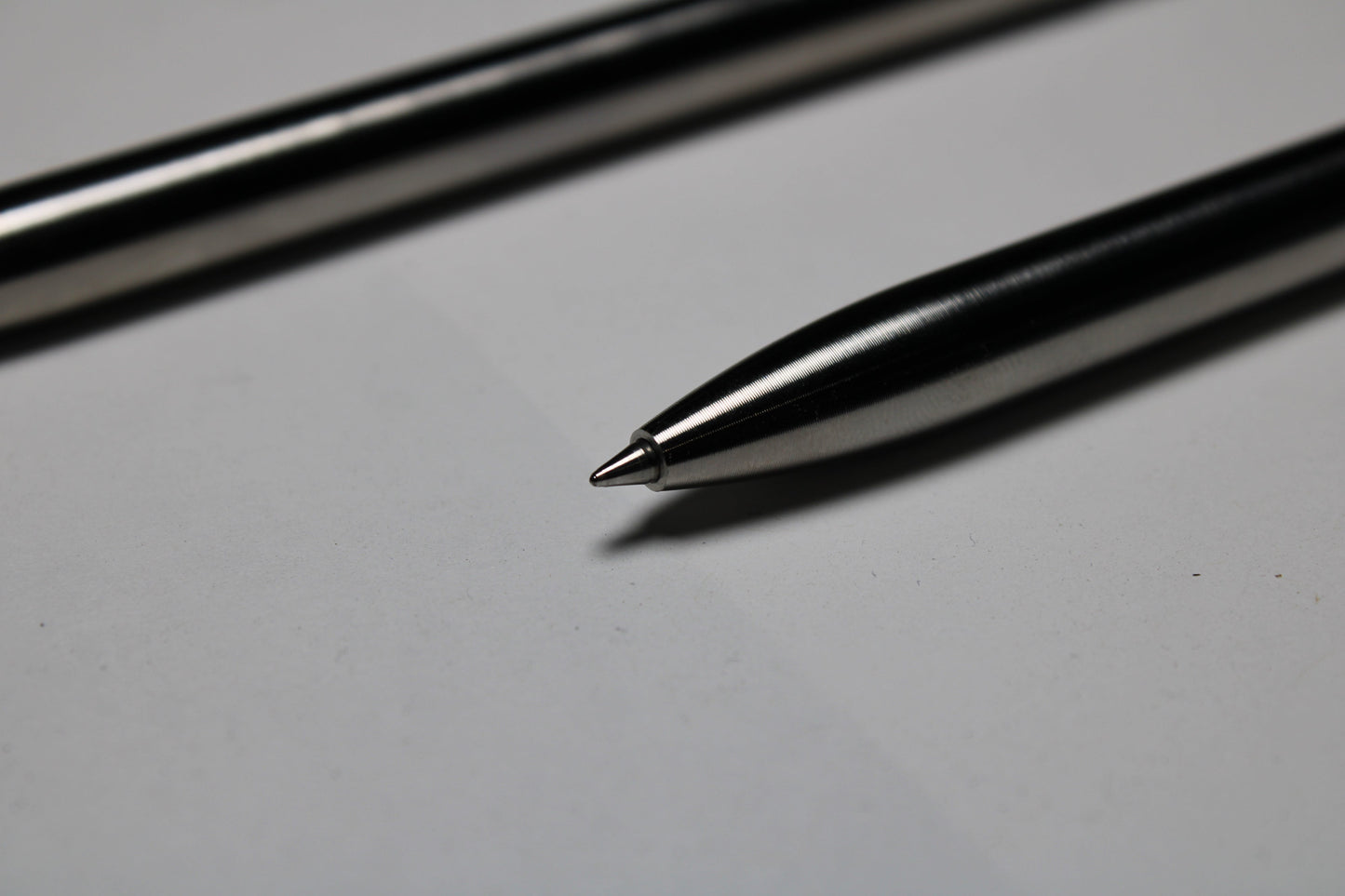

Tip bore drill is aligned and offset with great care and is machined to a tolerance of just 0.001" or 25 micron to a 2.5mm tip bore specifically for the Pilot G2. This pen will not fit ISO G2 refills with a spacer, the tip bore is too small by only another 0.001" to eliminate the most wiggle for this refill.
Click the button down and then return it by pinching the mechanism between your fingers, and the button will snap back. Threading has a high quality higbee start to make replacing the refill super easy.
This version is 5.28" (134.11mm) long, 0.37" (9.40mm) in diameter, and 26.10g (0.92oz) and comes equipped with a Fine Pilot G2 0.7mm.
